Easy Drain Compact 50 FF Tile EDCOMTFF190050 shower drain 190cm side spout
Brand:
Easy Drain Compact 50 FF Tile EDCOMTFF190050 shower drain 190cm side spout
€612.00
incl. VAT
Brand:
tile
Algemeen
Series
Easy Drain Compact 50 FF Tegel
Brand
Easy Drain
Delivery time
1 - 2 weeks
Color
tile
Douchegoot
Grate width
50mm

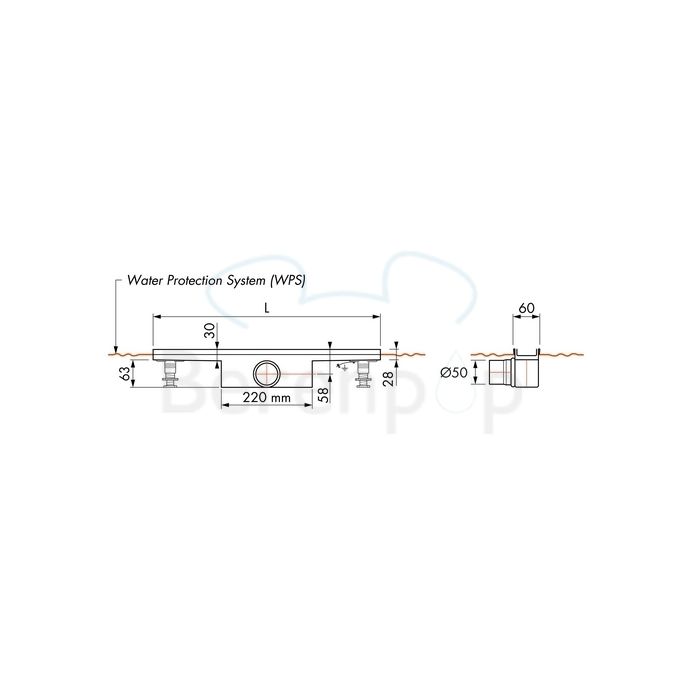

Installation depth
90mm - 99mm
Grate length
1900mm
Max drainage capacity
42 l/min
Grate look
own tile
Installation option
Floor drain without flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
Yes
Outer tube diameter
50mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, EN 1253 certified
Max drainage capacity entrance
34 l/min
Floor type
Sand cement, Concrete
Water seal height
50mm
Siphon
Cleanable drainage siphon
Description

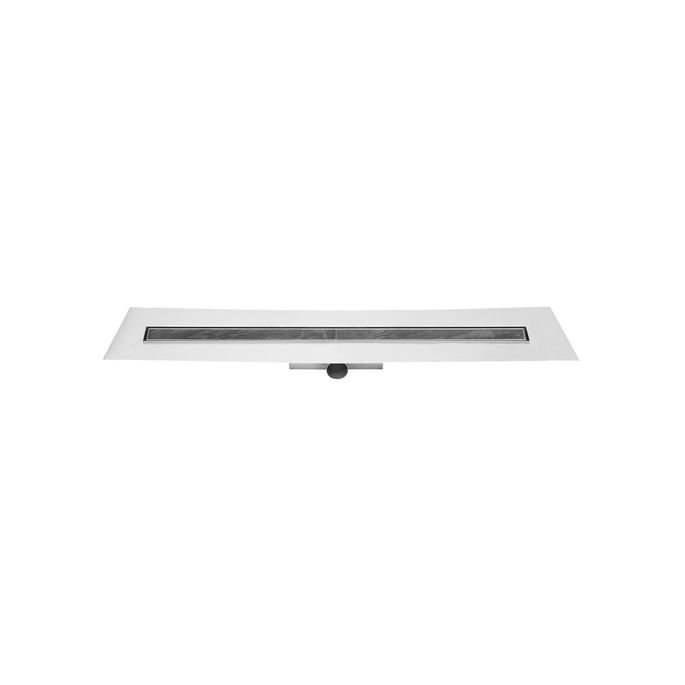

Easy Drain Compact 50 FF Tile shower drain
Easy Drain Compact, the most shallow shower drain in the world, has an easy to clean siphon with very high drainage capacity. The FF version is standard equipped with a flexible, factory-fitted waterproof cloth with a width of approximately 10 centimeters.
Grid - Tile
Built-in part - Water lock 50 mm
Product advantages
- Installation depth - 93 mm

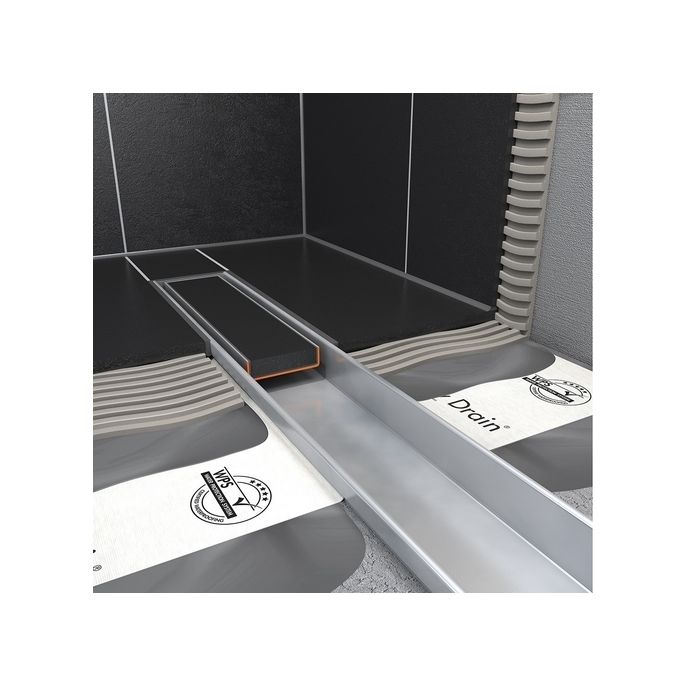

- FF version - completely waterproof installation

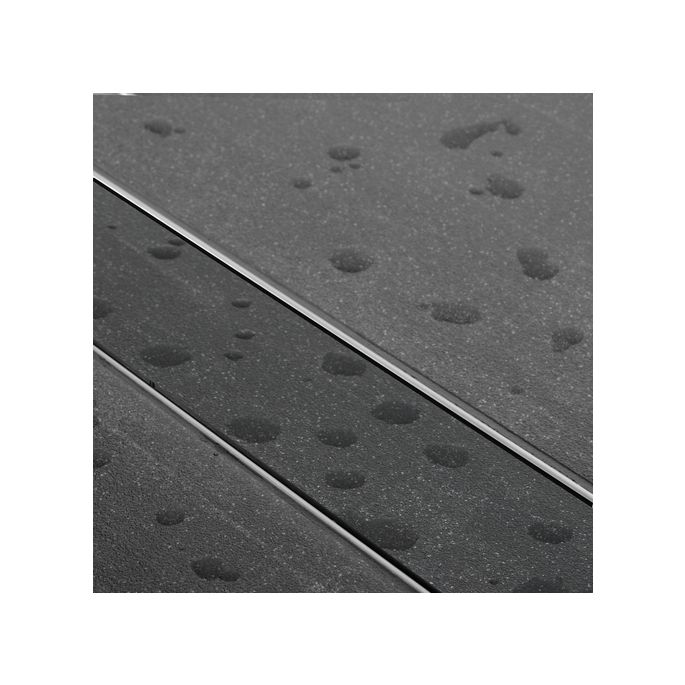

- Tile grating depth - 12 mm (tile shown is not supplied)
- Finishing part - adjustable in height
- Siphon - removable and cleanable
Characteristics
Adjustable grille, EN 1253 certified, Waterproof, Suitable for wheelchair
Includes height-adjustable feet and pre-assembled sealing cloth. Â
