Easy Drain Compact 50 FF Tile EDCOMTFF200050 shower drain 200cm side spout

Easy Drain Compact 50 FF Tile EDCOMTFF200050 shower drain 200cm side spout

€627.00 incl. VAT
Easy Drain Compact 50 FF Tile EDCOMTFF200050 shower drain 200cm side spout
Easy Drain Compact 50 FF Tile EDCOMTFF200050 shower drain 200cm side spout
€627.00 incl. VAT
tile
  • Free delivery from € 75 in NL and BE
  • Fast delivery: almost everything delivered in 3 days
  • Returns within 14 days of purchase
Delivery time: 1 - 2 weeks
Algemeen
Series
    Easy Drain Compact 50 FF Tegel
Brand
    Easy Drain
Delivery time
    1 - 2 weeks
Color
    tile
Douchegoot
Grate width
    50mm
Installation depth
    90mm - 99mm
Grate length
    2000mm
Max drainage capacity
    42 l/min
Grate look
    own tile
Installation option
    Floor drain without flange
Outlet
    Horizontal outlet
Pre-assembled sealing membrane
    Yes
Outer tube diameter
    50mm
Showerdrain one-pack
  • Yes
  • standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, EN 1253 certified
Max drainage capacity entrance
34 l/min
Floor type
Sand cement, Concrete
Water seal height
50mm
Siphon
Cleanable drainage siphon
Description

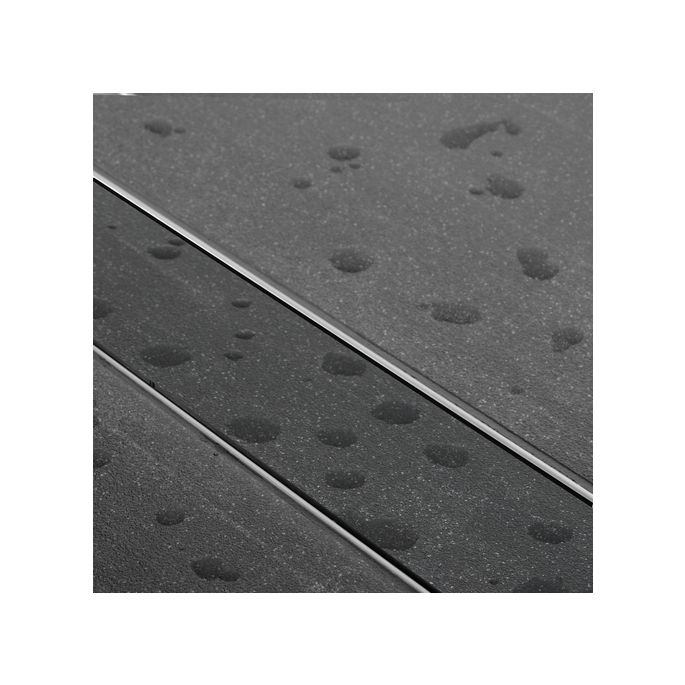

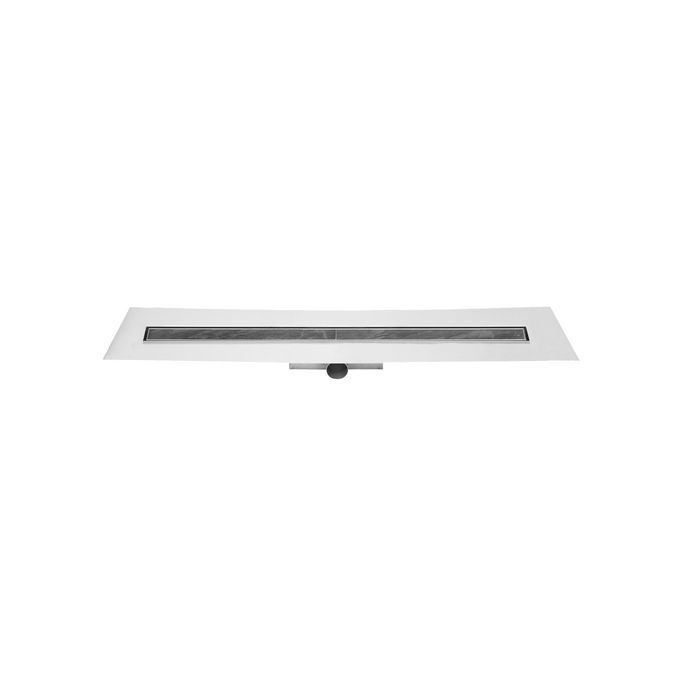

Easy Drain Compact 50 FF Tile shower drain

Easy Drain Compact, the most shallow shower drain in the world, has an easy to clean siphon with very high drainage capacity. The FF version is standard equipped with a flexible, factory-fitted waterproof cloth with a width of approximately 10 centimeters.

Grid - Tile

Built-in part - Water lock 50 mm

Product advantages

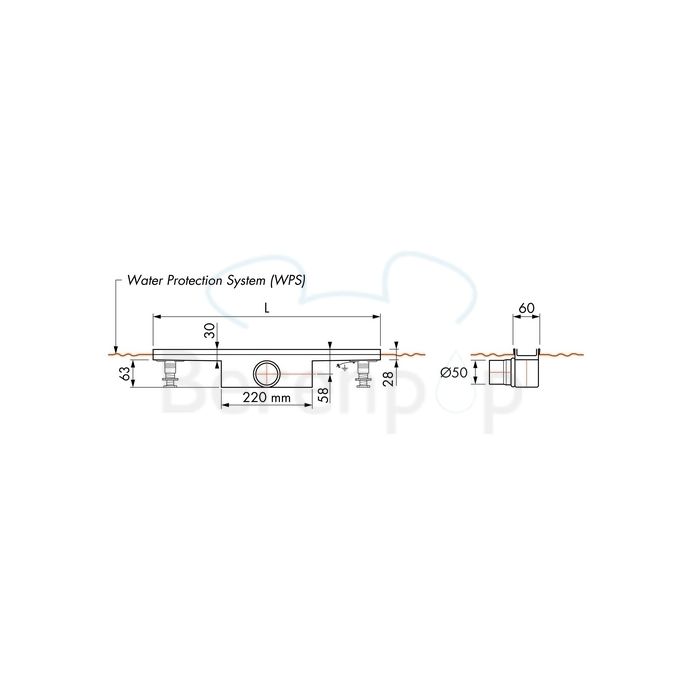

  • Installation depth - 93 mm
  • FF version - completely waterproof installation
  • Tile grating depth - 12 mm (tile shown is not supplied)
  • Finishing part - adjustable in height
  • Siphon - removable and cleanable

Characteristics

Adjustable grille, EN 1253 certified, Waterproof, Suitable for wheelchair

Includes height-adjustable feet and pre-assembled sealing cloth.
