Easy Drain Fixt 30 EDFT80030 shower drain 80cm horizontal outlet
Brand:
Easy Drain Fixt 30 EDFT80030 shower drain 80cm horizontal outlet
€245.00
incl. VAT
Brand:
stainless steel brushed
Algemeen
Series
Easy Drain Fixt
Brand
Easy Drain
Delivery time
2 - 3 days
Color
stainless steel brushed
Douchegoot

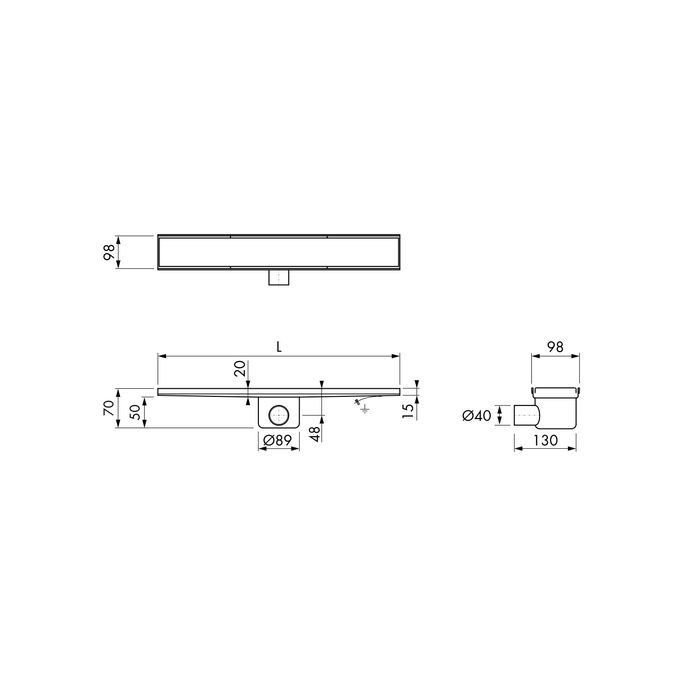

Grate width
98mm
Installation depth
70mm - 79mm
Grate length
800mm
Max drainage capacity
34 l/min
Grate look
pattern with holes
Installation option
Floor drain without flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
No
Outer tube diameter
40mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description
Easy Drain Fixt
The Easy Drain Fixt models and siphon housings are made entirely of high-quality stainless steel. The siphon can be easily removed for cleaning. Easy Drain Fixt 30 has a connection of ø 40 mm. The packaging includes a Fixt 30 including grate, insert race ring eccentric 40-50 mm, anchoring clips and ground terminal.
