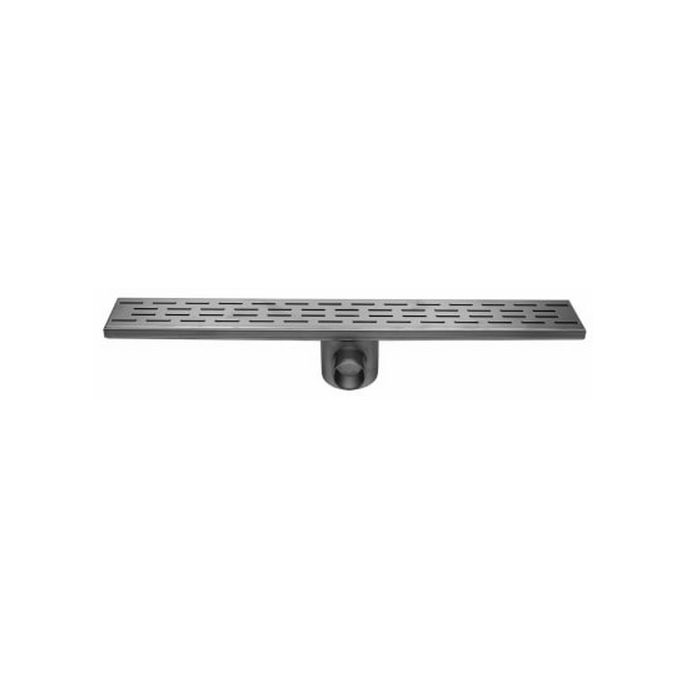

Easy Drain Fixt 50 EDFT50050 shower drain 50cm horizontal outlet
Brand:
Easy Drain Fixt 50 EDFT50050 shower drain 50cm horizontal outlet
€219.00
incl. VAT
stainless steel brushed
Algemeen
Series
Easy Drain Fixt
Brand
Easy Drain
Delivery time
1 - 2 weeks
Color
stainless steel brushed
Douchegoot
Grate width
98mm
Installation depth
100mm - 109mm
Grate length
500mm
Max drainage capacity
49 l/min
Grate look
pattern with holes
Installation option
Floor drain without flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
No
Outer tube diameter
50mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description
Easy Drain Fixt
The Easy Drain Fixt models and siphon housings are made entirely of high-quality stainless steel. The siphon can be easily removed for cleaning. Easy Drain Fixt 50 has a connection of ø 50 mm. Included in the packaging is a Fixt 50 including grate, sliding sleeve, anchoring clips, ground clamp and adjustable feet.
