Easy Drain Flex Class Round EDFLCLROUND shower drain radius 55 1/4 circle side outlet
Brand:
Easy Drain Flex Class Round EDFLCLROUND shower drain radius 55 1/4 circle side outlet
€517.00
incl. VAT
Brand:
Serie:
Categories:
stainless steel brushed
Algemeen
Series
Easy Drain Flex Class Round
Brand
Easy Drain
Delivery time
1 - 2 weeks
Color
stainless steel brushed
Douchegoot

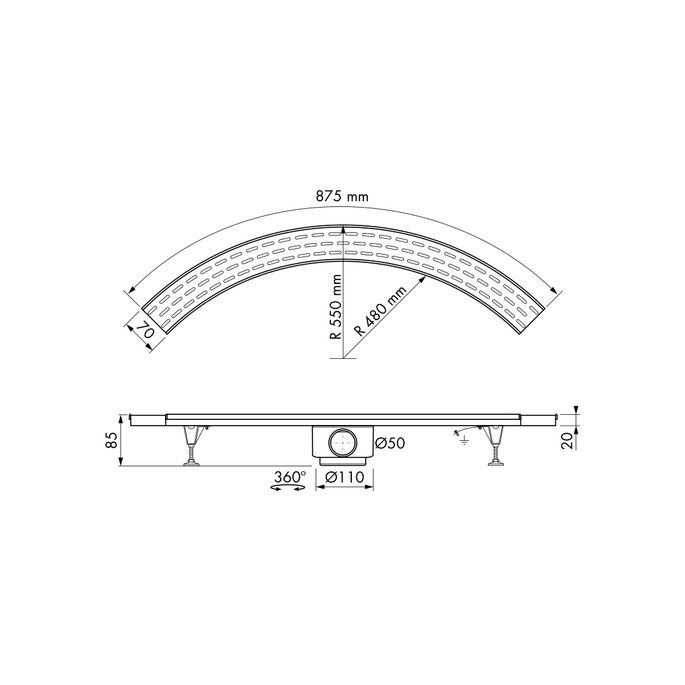

Grate width
70mm
Installation depth
80mm - 89mm
Grate length
875mm
Max drainage capacity
24 l/min
Grate look
pattern with holes
Installation option
Floor drain without flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
No
Outer tube diameter
50mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description
Easy Drain Round Flex Class
Round Flex Class

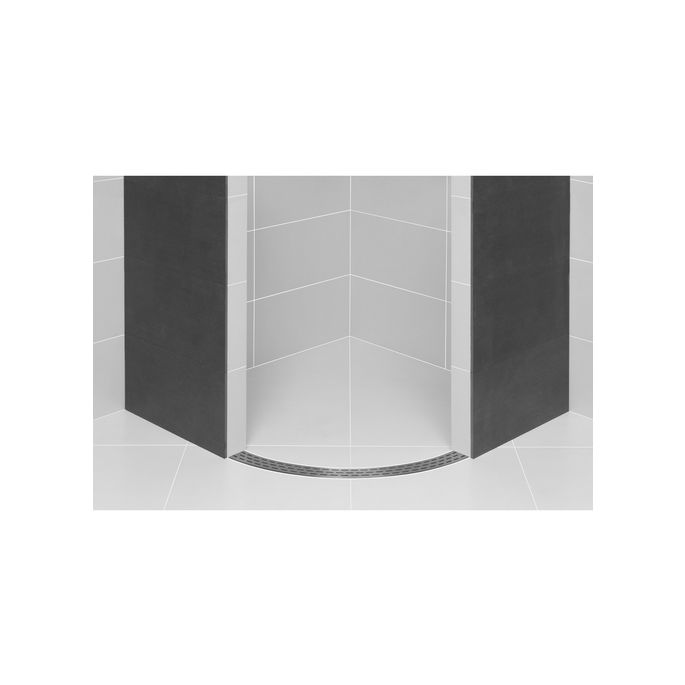

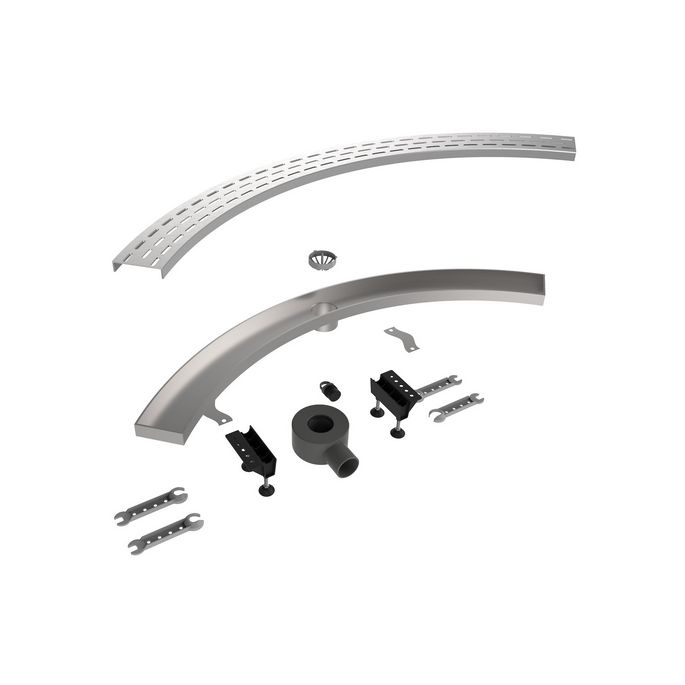

Easy Drain Specials, for special bathroom designs. The Round Flex Class linear shower drain is specially developed to offer a beautiful and safe solution for a round shower design. This shower drain is supplied as a complete set and comes with a removable, easy-to-clean drainage syphon.
Technical information
- Application: New construction, Renovation
- Certification: DIN 18534, EN 1253
- Substrate: Concrete / Cement, Wood floor, LEWIS plates
- Floor finish: Thin tiles, Glass mosaic, Tile / Ceramic / Mosaic
- Installation depth of the built-in part: 65 mm
- Min. installation depth: 85 mm
- Connection: 50 mm
- Height adjustable feet included: Yes
- Outlet type: Rotatable outlet
- Water seal: 35
- Pre-assembled sealing membrane (WPS): No.
- Siphon characteristics: Rotatable and adjustable siphon housing, Condensable siphon housing, Cleanable siphon
