Easy Drain M-line MLINE100030 shower drain 100cm horizontal outlet
Brand:
Easy Drain M-line MLINE100030 shower drain 100cm horizontal outlet
€457.00
incl. VAT
Brand:
stainless steel brushed
tile
Algemeen
Series
Easy Drain M-line
Brand
Easy Drain
Delivery time
1 - 2 weeks
Color
- stainless steel brushed
- tile
Douchegoot
Grate width
70mm
Installation depth
- 60mm - 69mm
- 80mm - 89mm
- 70mm - 79mm
Grate length
1000mm
Max drainage capacity
32 l/min
Grate look
- closed / smooth
- own tile
Installation option
Wall drain without flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
Yes
Outer tube diameter
40mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description

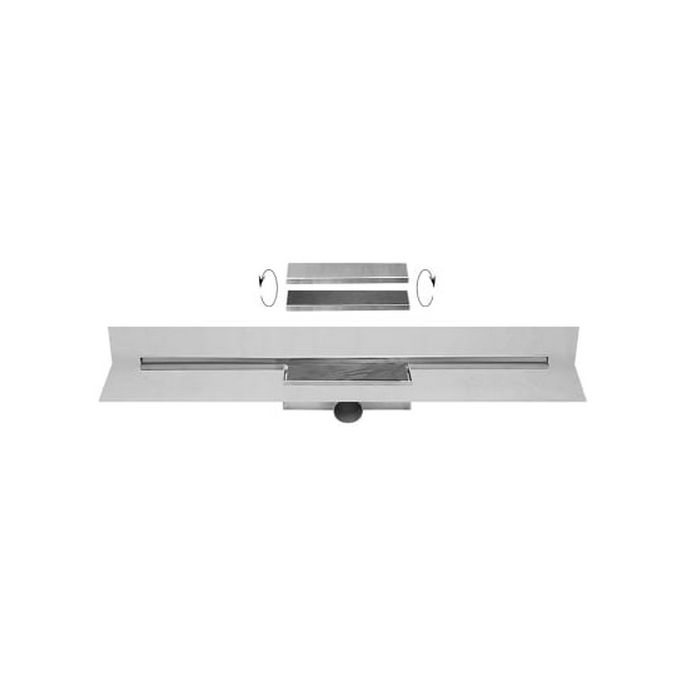

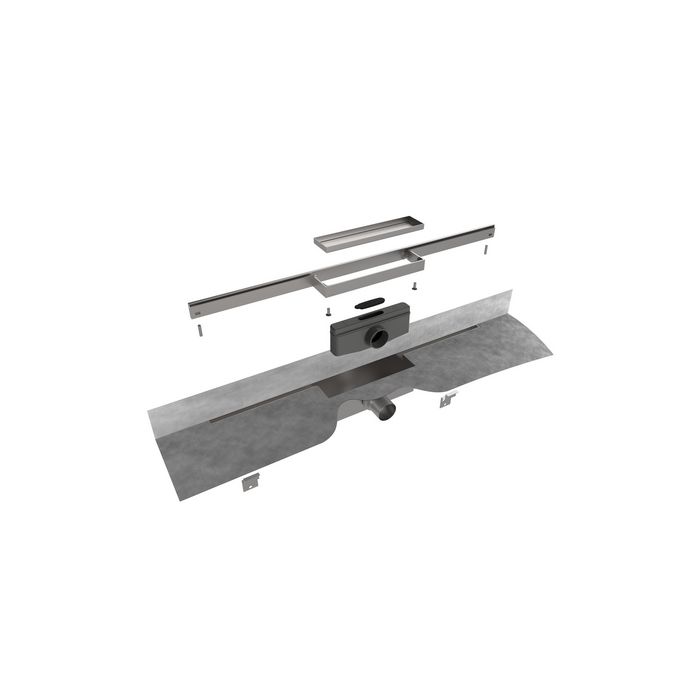

Easy Drain M-line
Brushed stainless steel / Tile

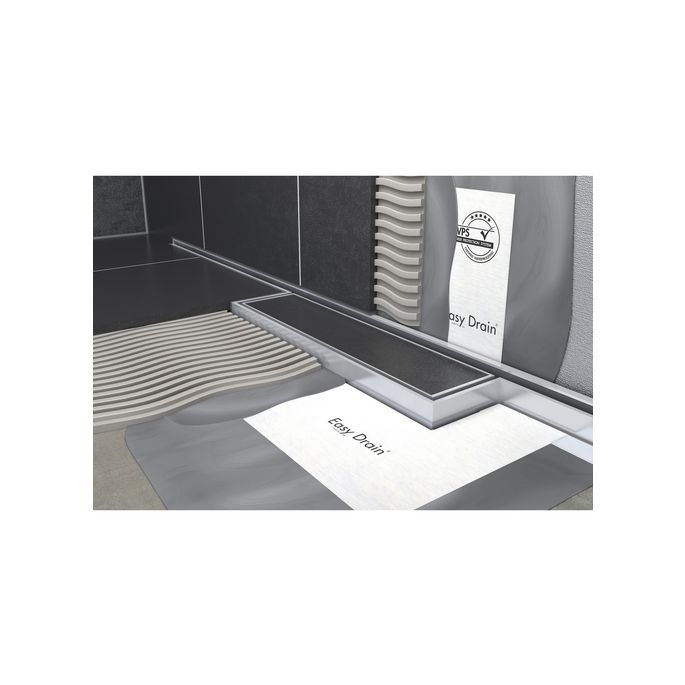

With the Easy Drain M-line you choose for the lowest shower drain in the world. Manufactured by the inventor of the linear shower drain. The invisible and stylish wall drainage system from Easy Drain, equipped with our patented TAF and WPS-system. Our TAF system has been specially developed to enable secondary drainage while the pre-assembled sealing membrane (WPS) ensures a complete watertight installation.
- SHOWER DRAIN MODEL: Linear shower drain
- SERIE: M-line
- APPLICATION: New construction, Renovation
- CERTIFICATION: DIN 18534, EN 1253, ETAG-022
- SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
- FLOOR FINISH: Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic
- INSTALLATION DEPTH (INCL. GRATE) (MM): 63
- INSTALLATION DEPTH (MM): 70
- CONNECTION (⌀): 40 (Global)
- HEIGHT ADJUSTABLE FEET INCLUDED: No
- INSTALLATION OPTION: Wall
- DIMENSIONS (MM): 1000 mm
- OUTLET TYPE: Fixed outlet
- WATER SEAL (MM): 30
- BUILT-IN SET: M-line | Fixed outlet | Water seal 30 mm
- OUTLET: Horizontal
- LOCATION IN SHOWER: One-sided, Three-fold
- DRAINAGE CAPACITY (L/MIN): 32
- PRE-ASSEMBLED SEALING MEMBRANE (WPS): Yes
- SIPHON CHARACTERISTICS: Cleanable
- GRATE: Brushed stainless steel / Tile
- GRATE PATTERN: Zero / Closed
- ADJUSTABLE GRATE: No
- TAF FRAME TYPE: TAF (Tile Adjustable Frame)
- FRAME MATERIAL: Stainless steel (304)
- WHEELCHAIR ACCESSIBLE: Yes
- EXTENSION SET AVAILABLE: No
