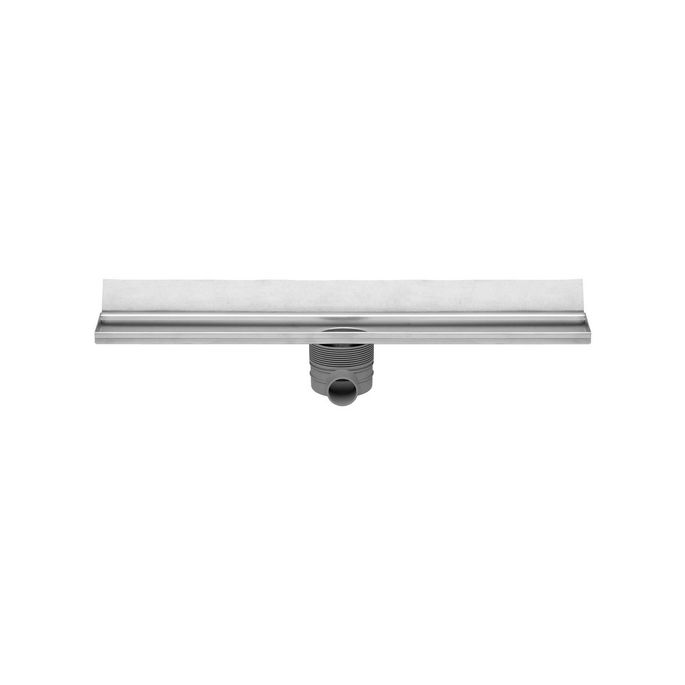

Easy Drain Multi Built-in part EDMWI800 shower drain 80cm side extension Wall (without grate)
- stainless steel brushed
- tile
- 110mm - 119mm
- 90mm - 99mm
- 100mm - 109mm
- 80mm - 89mm
- 70mm - 79mm
- pattern with holes
- closed / smooth
- own tile
- No
- with a grid of your choice
Easy Drain Multi Built-in shower drain

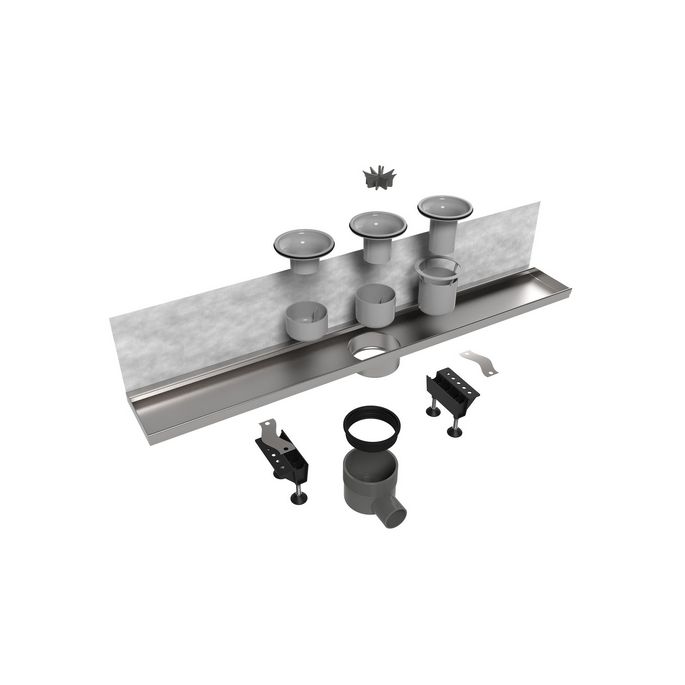

Easy Drain Multi, the worlds most multifunctional linear shower drain, has various design grates and almost limitless application possibilities. The ABS trap body can be shortened to any height and is supplied with three water seals. If required, another type of Multi trap body can be ordered separately.

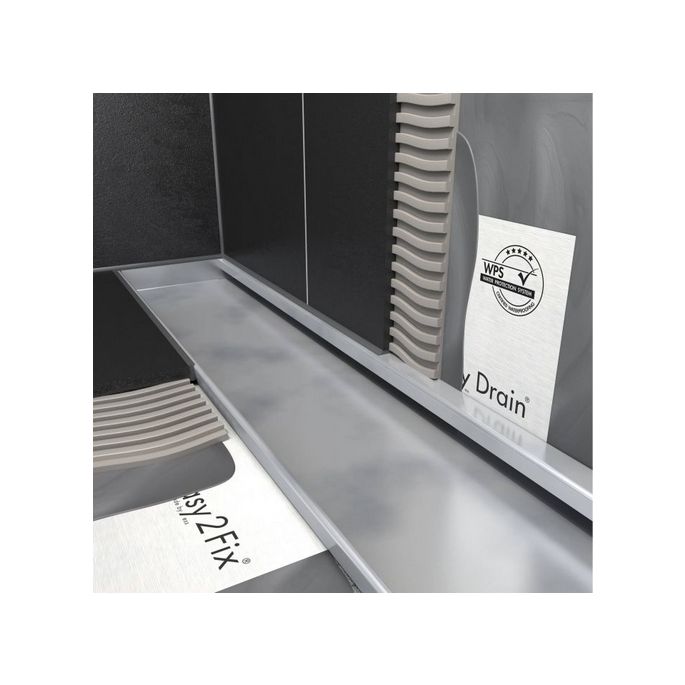

Suitable for every installation situation
The multifunctional linear shower drain lives up to its name. Thanks to its watertight guarantee, height adjustable grate and several siphons, the multi is suitable for a wide range of wet area situations. Its reversible tile grate offers a styled appearance and presents the merging of a shower drain into the tiled floor.

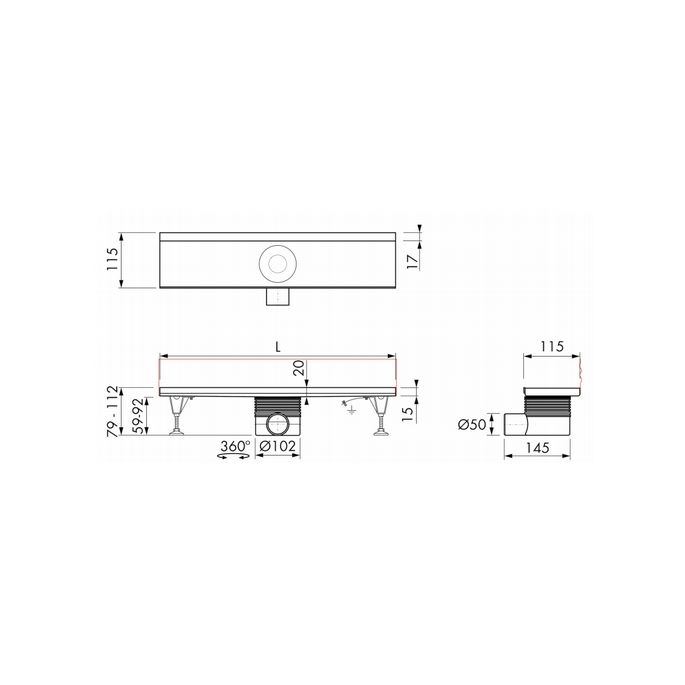

Technical information
- Application: New construction, Renovation
- Installation depth of the built-in part: 59 mm
- Min. installation depth: 79 mm
- Connection: 50 mm
- Height adjustable feet included: Yes
- Outlet type: Rotatable outlet
- Water seal: 30/35/50
- Pre-assembled sealing membrane (WPS): No.
- Siphon characteristics: Cleanable, Height adjustable, Pivotable & adjustable
