Easy Drain Multi Square EDMHOEK1000 shower drain 1000x1000mm side outlet
Brand:
Easy Drain Multi Square EDMHOEK1000 shower drain 1000x1000mm side outlet
€612.00
incl. VAT
Brand:
stainless steel brushed
Algemeen
Series
Easy Drain Multi Square
Brand
Easy Drain
Delivery time
1 - 2 weeks
Color
stainless steel brushed
Douchegoot
Grate width
98mm
Installation depth
- 110mm - 119mm
- 90mm - 99mm
- 100mm - 109mm
- 80mm - 89mm
- 70mm - 79mm
Grate length
1000mm
Max drainage capacity
49 l/min
Grate look
pattern with holes
Installation option
Floor drain without flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
No
Outer tube diameter
50mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics

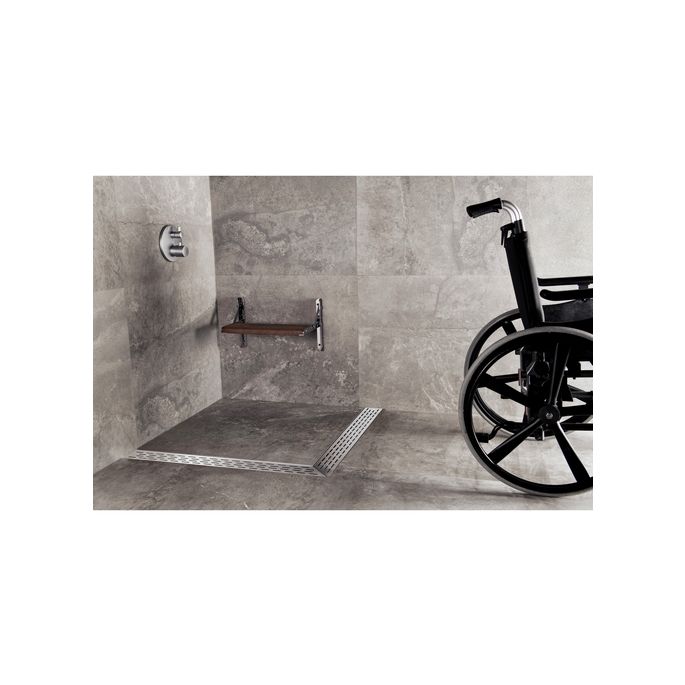

Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description
Easy Drain Multi Square
Square Multi

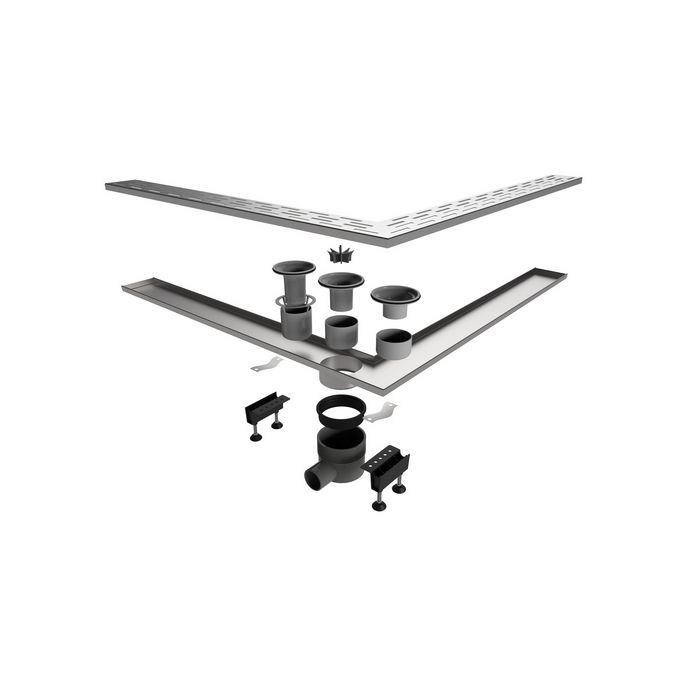

Easy Drain Specials, for special bathroom designs. The Square Multi is specially developed to offer a beautiful solution for an open shower entrance and equipped with the Multi drainage syphon. The unique ABS trap body can be shortened to any desired height and is supplied with three water seals. If required, another type of Multi trap body can be ordered separately.
Technical information
- Application: New construction
- Certification: DIN 18534, EN 1253
- Substrate: Concrete / Cement, Wood floor, LEWIS plates
- Floor finish: Thin tiles, Glass mosaic, Tile / Ceramic / Mosaic

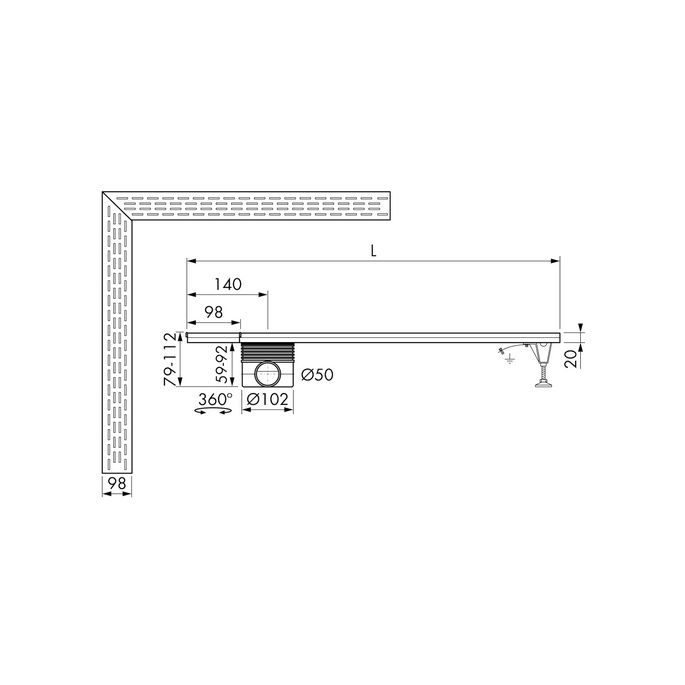

- Installation depth of the built-in part: 59 mm
- Min. installation depth: 79 mm
- Connection: 50 mm
- Height adjustable feet included: Yes
- Outlet type: swivel spout
- Water seal: 30/35/50
- Location in shower: Square door, Square wall
- Pre-assembled sealing membrane (WPS): No.
- Siphon characteristics: Rotatable and adjustable siphon housing, Condensable siphon housing, Cleanable siphon
