Easy Drain Multi Tile drain EDT1600 shower drain 160cm side extension

Easy Drain Multi Tile drain EDT1600 shower drain 160cm side extension

€474.00 incl. VAT
Easy Drain Multi Tile drain EDT1600 shower drain 160cm side extension
Easy Drain Multi Tile drain EDT1600 shower drain 160cm side extension
€474.00 incl. VAT
tile
  • Free delivery from € 75 in NL and BE
  • Fast delivery: almost everything delivered in 3 days
  • Returns within 14 days of purchase
Delivery time: 1 - 2 weeks
Algemeen
Series
    Easy Drain Multi Tegeldrain
Brand
    Easy Drain
Delivery time
    1 - 2 weeks
Color
    tile
Douchegoot
Grate width
    98mm
Installation depth
  • 110mm - 119mm
  • 90mm - 99mm
  • 100mm - 109mm
  • 80mm - 89mm
Grate length
    1600mm
Max drainage capacity
    49 l/min
Grate look
    own tile
Installation option
    Floor drain without flange
Outlet
    Horizontal outlet
Pre-assembled sealing membrane
    No
Outer tube diameter
    50mm
Showerdrain one-pack
  • Yes
  • standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description

Easy Drain Multi Tile drain

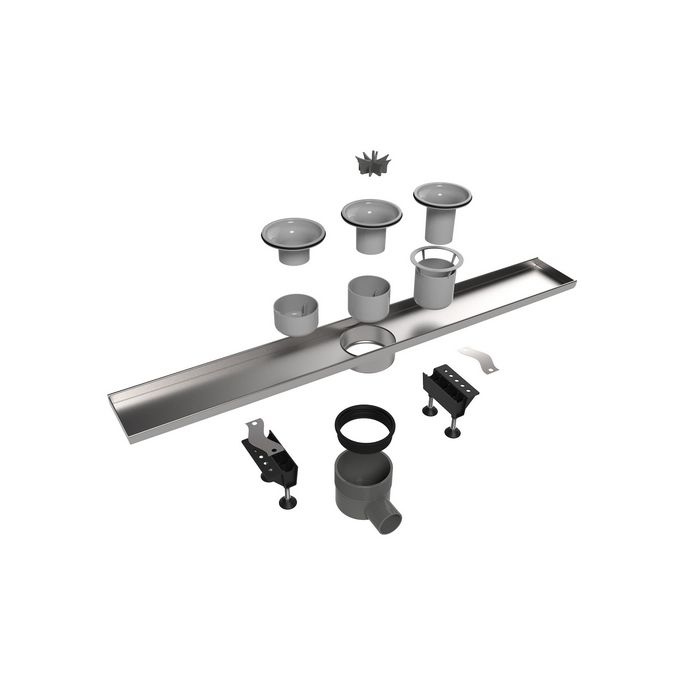

Easy Drain Multi, the worlds most multifunctional linear shower drain, has various design grates and almost limitless application possibilities. The ABS trap body can be shortened to any height and is supplied with three water seals. If required, another type of Multi trap body can be ordered separately.



Suitable for every installation situation

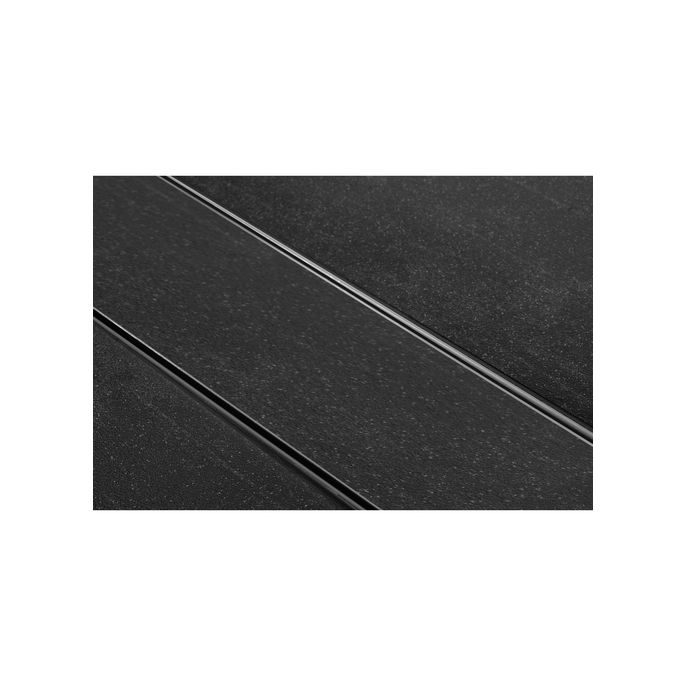

The multifunctional linear shower drain lives up to its name. Thanks to its watertight guarantee, height adjustable grate and several siphons, the multi is suitable for a wide range of wet area situations. Its reversible tile grate offers a styled appearance and presents the merging of a shower drain into the tiled floor.



Technical information

  • Application: New construction, Renovation
  • Certification: DIN 18534, EN 1253, ETAG-022
  • Substrate: Concrete / Sand Cement, Lewis sheets, Wooden floors
  • Floor finish: Glass Mosaic, Thin tiles, Tiles / Mosaic
  • Installation depth of the built-in part: 59 mm
  • Min. installation depth: 89 mm
  • Connection: 50 mm
  • Height adjustable feet included: Yes
  • Outlet type: Rotatable outlet
  • Water seal: 30/35/50
  • Location in shower: Between two walls, Free in the floor
  • Pre-assembled sealing membrane (WPS): No.
  • Siphon characteristics: Cleanable, Height adjustable, Pivotable & adjustable
  • Tile grating depth: 12 mm
