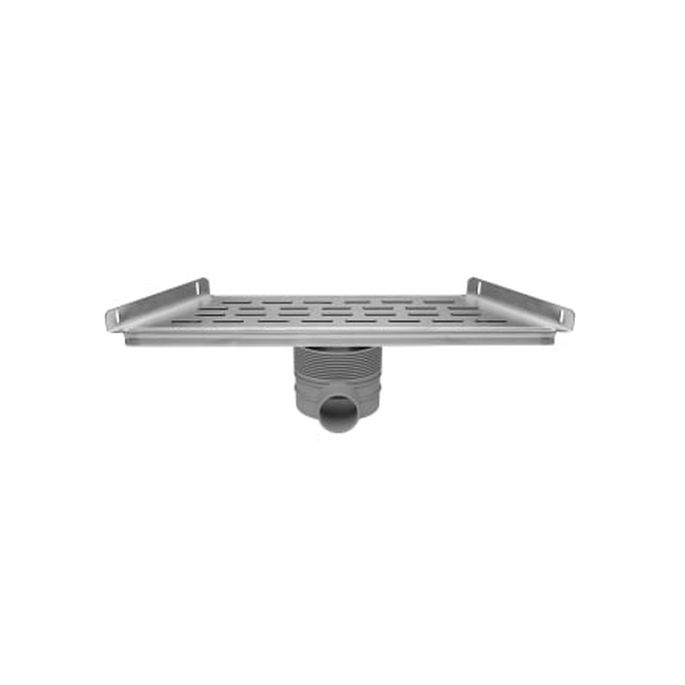

Easy Drain Multi Trapezium 300 EDMTRAP300 shower drain 485x300x98mm side outlet
Brand:
Easy Drain Multi Trapezium 300 EDMTRAP300 shower drain 485x300x98mm side outlet
€298.00
incl. VAT
Brand:
stainless steel brushed
Algemeen
Series
Easy Drain Multi Trapezium
Brand
Easy Drain
Delivery time
2 - 3 days
Color
stainless steel brushed
Douchegoot
Grate width
98mm
Installation depth
- 110mm - 119mm
- 90mm - 99mm
- 100mm - 109mm
- 80mm - 89mm
- 70mm - 79mm
Grate length
- 300mm
- 485mm
Max drainage capacity
49 l/min
Grate look
pattern with holes
Installation option
Wall drain with flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
No
Outer tube diameter
50mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description
Easy Drain Multi Trapezium
Trapezium Multi

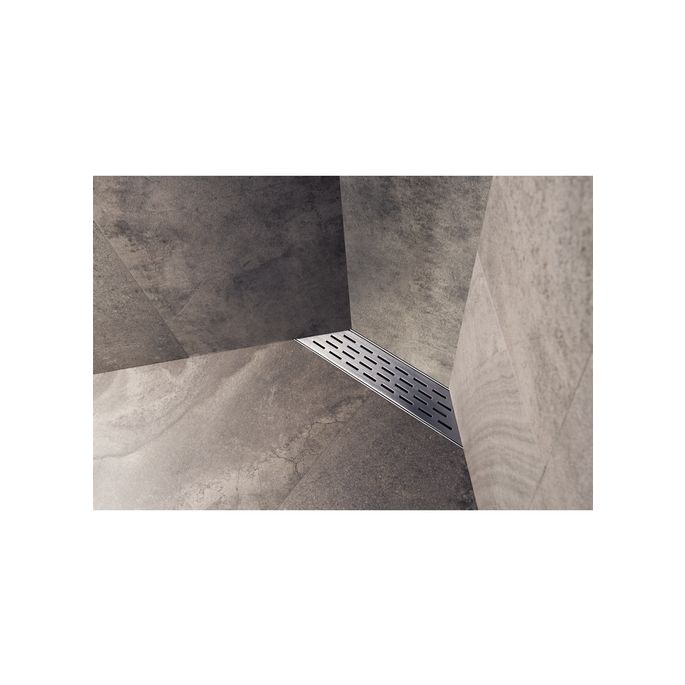

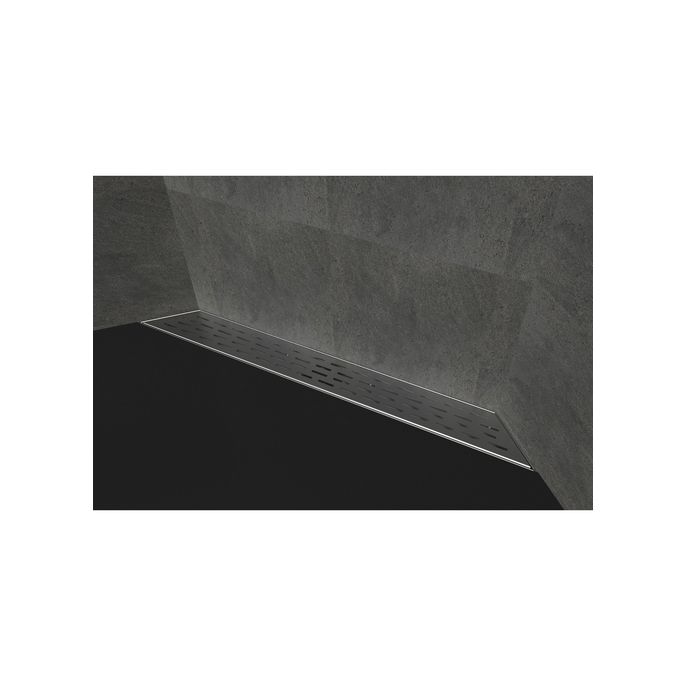

Easy Drain Specials, for special bathroom designs. The Trapezium can be installed in virtually any angular position and is ideally suited for a diagonally tiled shower floor. This product has a Multi Siphon with 360 ° swivel and slightly tiltable connection. If desired, other types of siphon housings can be ordered separately.

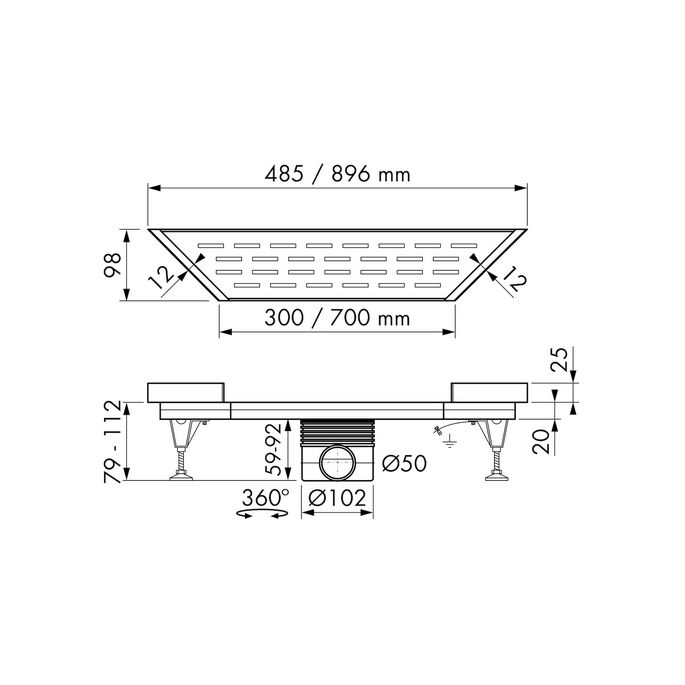

Technical information
- Application: New construction
- Certification: DIN 18534, EN 1253
- Substrate: Concrete / Cement, Wood floor, LEWIS plates
- Floor finish: Thin tiles, Glass mosaic, Tile / Ceramic / Mosaic
- Installation depth of the built-in part: 59 mm
- Min. installation depth: 79 mm
- Connection: 50 mm
- Height adjustable feet included: Yes
- Outlet type: swivel spout
- Water seal: 30/35/50

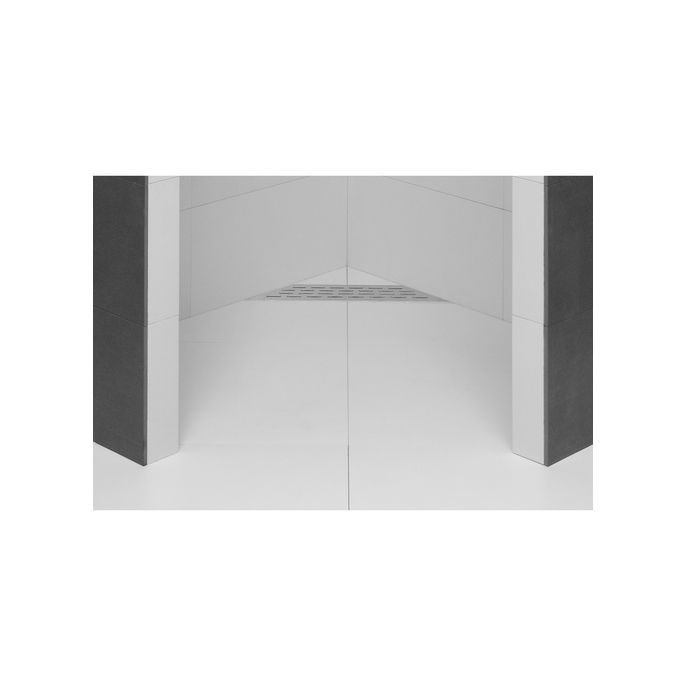

- Location in shower: Trapezium door mounting, Trapezium three-sided mounting
- Pre-assembled sealing membrane (WPS): No.

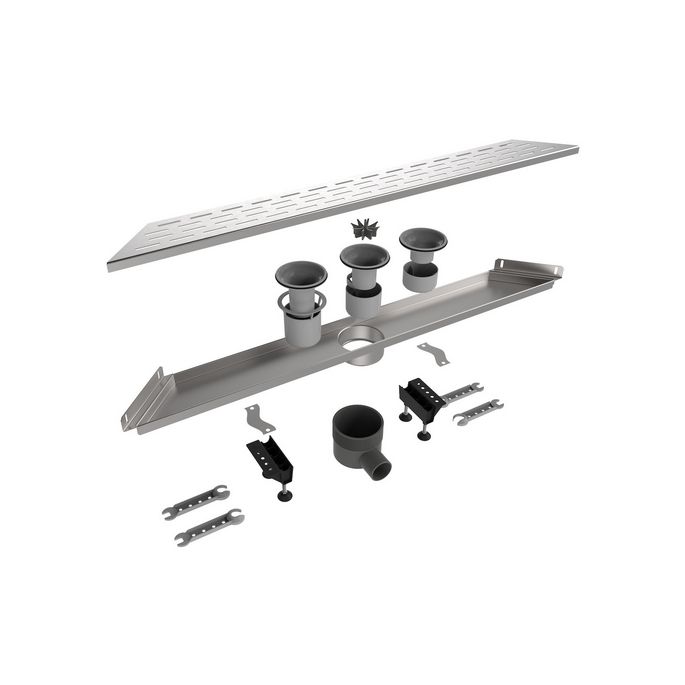

- Siphon characteristics: Rotatable and adjustable siphon housing, Condensable siphon housing, Cleanable siphon
