Easy Drain Vinyl EDVINM270035 shower drain 70cm horizontal outlet
Brand:
Easy Drain Vinyl EDVINM270035 shower drain 70cm horizontal outlet
€381.00
incl. VAT
Brand:
stainless steel brushed
Algemeen
Series
Easy Drain Vinyl
Brand
Easy Drain
Delivery time
1 - 2 weeks
Color
stainless steel brushed
Douchegoot

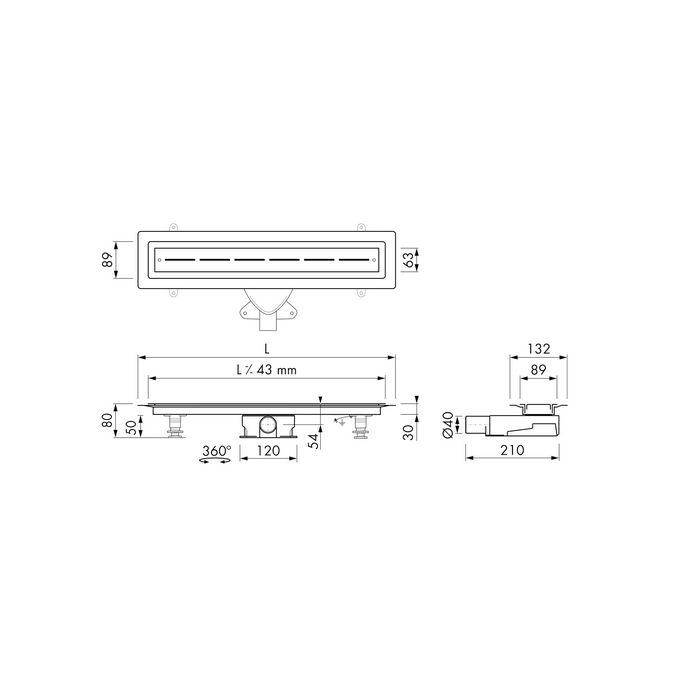

Grate width
63mm
Installation depth
80mm - 89mm
Grate length
700mm
Max drainage capacity
28 l/min
Grate look
pattern with holes
Installation option
Floor drain without flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
No
Outer tube diameter
40mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description
Easy Drain Vinyl
Brushed stainless steel

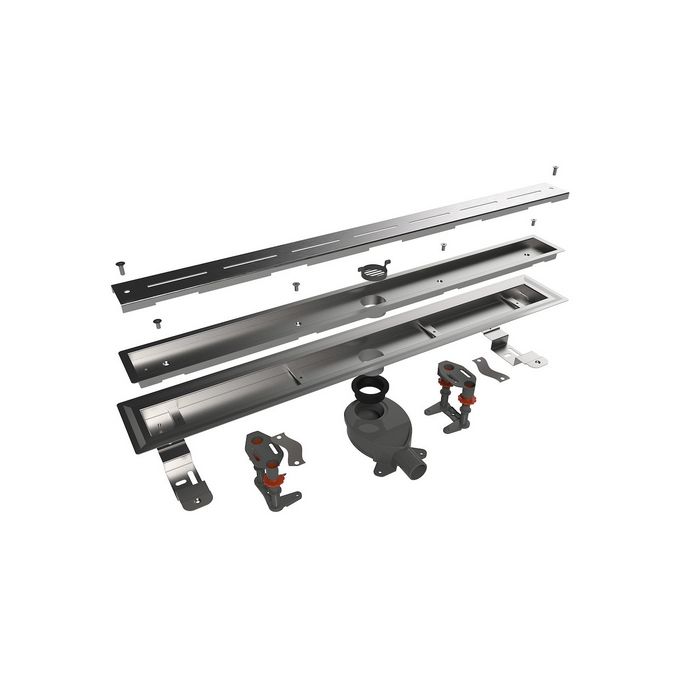

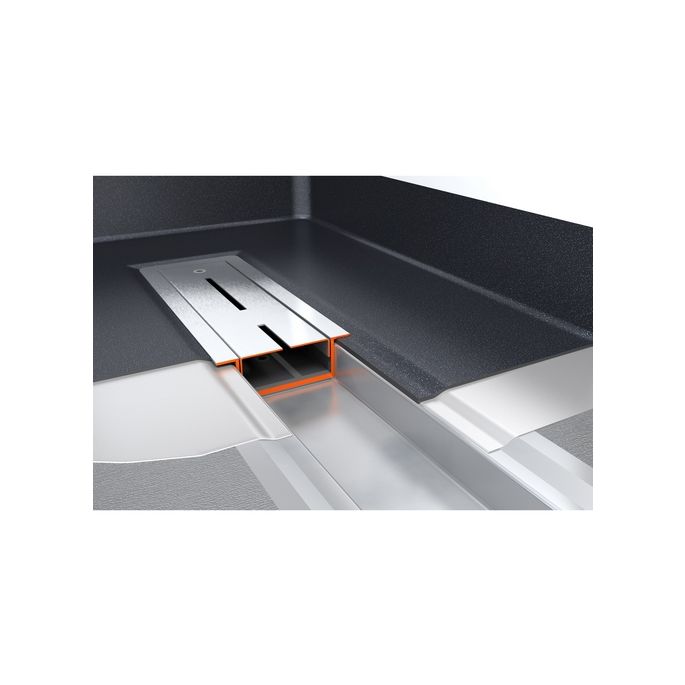

Easy Drain Vinyl is specially designed for use in combination with vinyl flooring. The vinyl can easily be clamped between the drain’s grate and build-in set to ensure a complete watertight installation. This way, the frame seamlessly fits into the vinyl floor. The Vinyl linear shower drain is supplied as complete set including: lockable grate, trap body, drainage siphon and height adjustable legs.
- SHOWER DRAIN MODEL: Linear shower drain
- SERIE: Vinyl
- APPLICATION: New construction, Renovation
- CERTIFICATION: DIN 18534, EN 1253, ETAG-022
- SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
- FLOOR FINISH: Vinyl
- INSTALLATION DEPTH (INCL. GRATE) (MM): 80
- INSTALLATION DEPTH (MM): 80
- CONNECTION (⌀): 40 (Global)
- HEIGHT ADJUSTABLE FEET INCLUDED: Yes
- INSTALLATION OPTION: Floor
- DIMENSIONS (MM): 700 mm
- OUTLET TYPE: Rotatable outlet
- WATER SEAL (MM): 28
- BUILT-IN SET: M2-35 | Rotatable outlet | Water seal 28 mm
- OUTLET: Horizontal (Vertical outlet optional)
- LOCATION IN SHOWER: Between two walls, Free in the floor
- DRAINAGE CAPACITY (L/MIN): 28
- PRE-ASSEMBLED SEALING MEMBRANE (WPS): No
- SIPHON CHARACTERISTICS: Cleanable, Height adjustable, Pivotable & adjustable
- GRATE: Brushed stainless steel
- GRATE PATTERN: Centre, Standard
- ADJUSTABLE GRATE: No

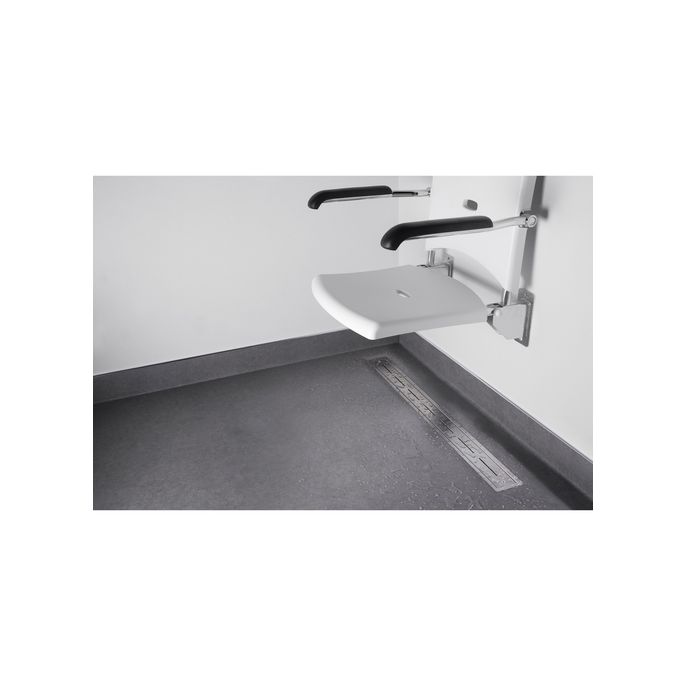

- WHEELCHAIR ACCESSIBLE: Yes
- EXTENSION SET AVAILABLE: No
