Easy Drain Vinyl EDVINM290050 shower drain 90cm horizontal outlet

Easy Drain Vinyl EDVINM290050 shower drain 90cm horizontal outlet

€410.00 incl. VAT
Easy Drain Vinyl EDVINM290050 shower drain 90cm horizontal outlet
Easy Drain Vinyl EDVINM290050 shower drain 90cm horizontal outlet
€410.00 incl. VAT
stainless steel brushed
  • Free delivery from € 75 in NL and BE
  • Fast delivery: almost everything delivered in 3 days
  • Returns within 14 days of purchase
Delivery time: 1 - 2 weeks
Algemeen
Series
    Easy Drain Vinyl
Brand
    Easy Drain
Delivery time
    1 - 2 weeks
Color
    stainless steel brushed
Douchegoot
Grate width
    63mm
Installation depth
  • 90mm - 99mm
  • 100mm - 109mm
Grate length
    900mm
Max drainage capacity
    33 l/min
Grate look
    pattern with holes
Installation option
    Floor drain without flange
Outlet
    Horizontal outlet
Pre-assembled sealing membrane
    No
Outer tube diameter
    50mm
Showerdrain one-pack
  • Yes
  • standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description

Easy Drain Vinyl
Brushed stainless steel

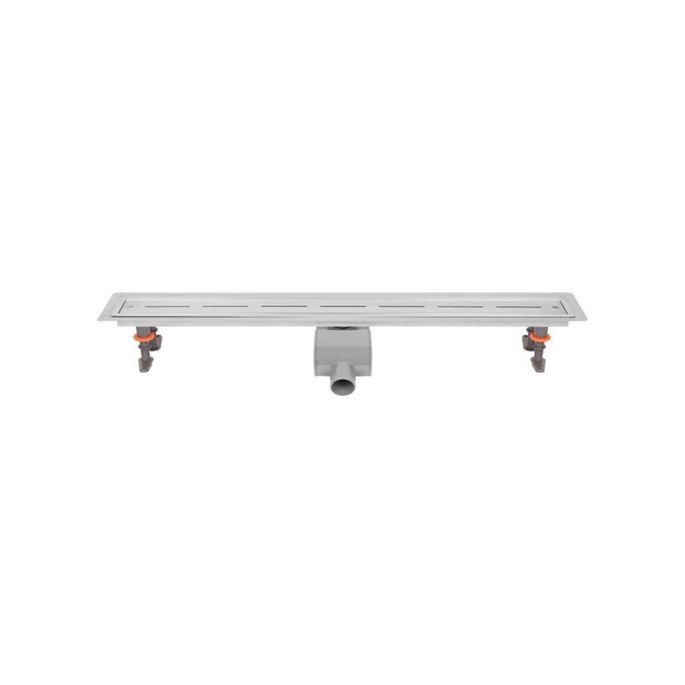

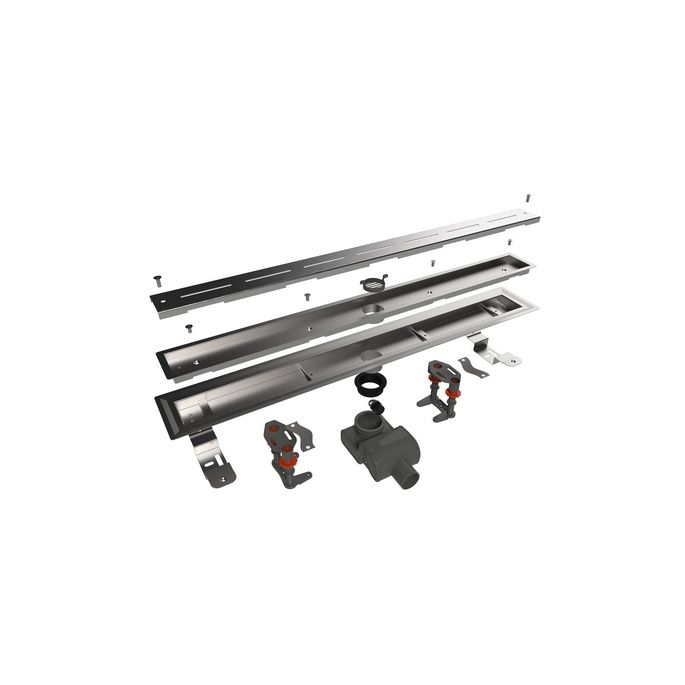

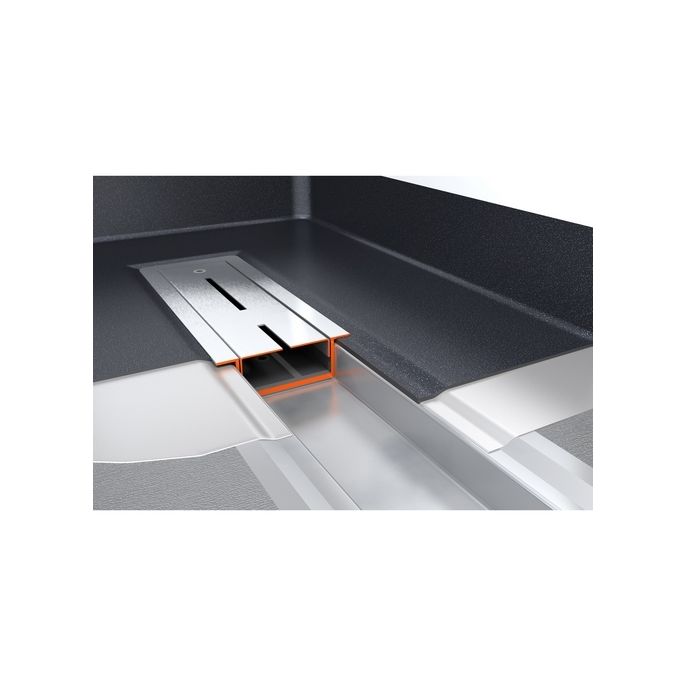

Easy Drain Vinyl is specially designed for use in combination with vinyl flooring. The vinyl can easily be clamped between the drain’s grate and build-in set to ensure a complete watertight installation. This way, the frame seamlessly fits into the vinyl floor. The Vinyl linear shower drain is supplied as complete set including: lockable grate, trap body, drainage siphon and height adjustable legs.

  • SHOWER DRAIN MODEL: Linear shower drain
  • SERIE: Vinyl
  • APPLICATION: New construction, Renovation
  • CERTIFICATION: DIN 18534, EN 1253, ETAG-022
  • SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
  • FLOOR FINISH: Vinyl

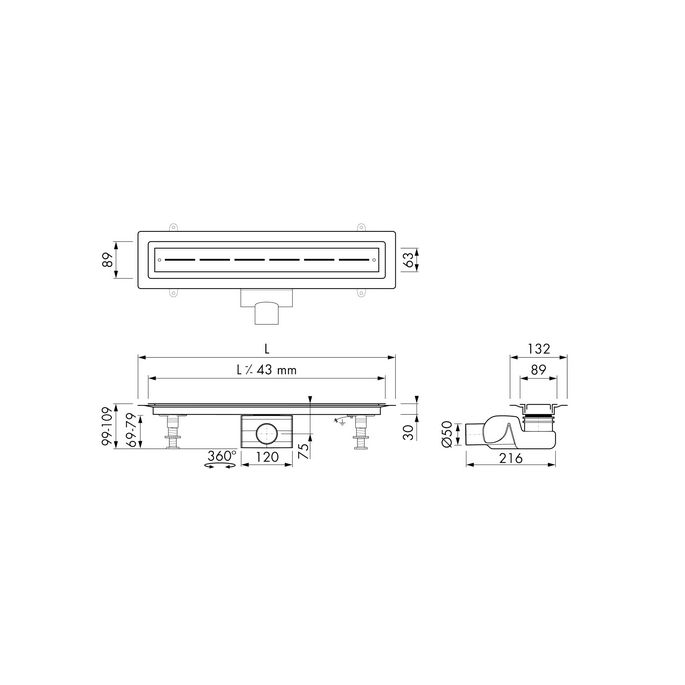

  • INSTALLATION DEPTH (INCL. GRATE) (MM): 99
  • INSTALLATION DEPTH (MM): 99
  • CONNECTION (⌀): 50 (Global)
  • HEIGHT ADJUSTABLE FEET INCLUDED: Yes
  • INSTALLATION OPTION: Floor
  • DIMENSIONS (MM): 900 mm
  • OUTLET TYPE: Rotatable outlet
  • WATER SEAL (MM): 50
  • BUILT-IN SET: M2-50 | Rotatable outlet | Water seal 50 mm
  • OUTLET: Horizontal (Vertical outlet optional)
  • LOCATION IN SHOWER: Between two walls, Free in the floor
  • DRAINAGE CAPACITY (L/MIN): 33
  • PRE-ASSEMBLED SEALING MEMBRANE (WPS): No
  • SIPHON CHARACTERISTICS: Cleanable, Height adjustable, Pivotable & adjustable

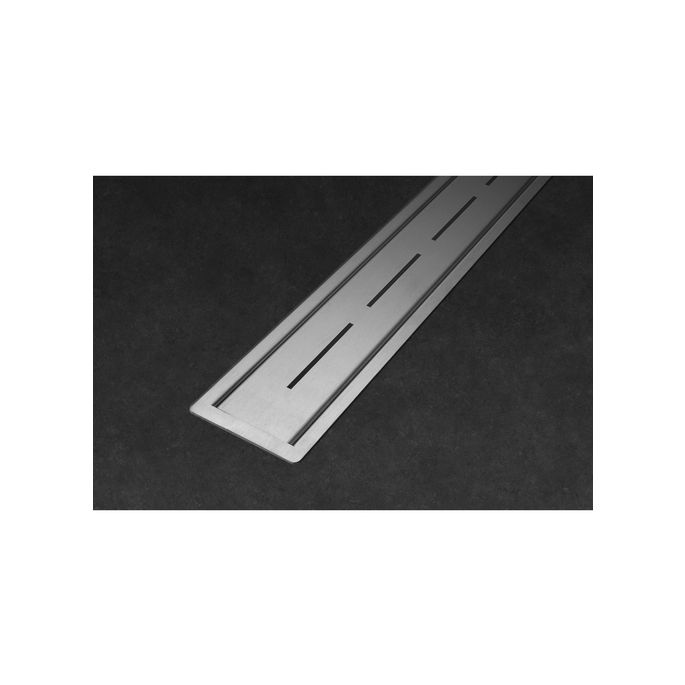

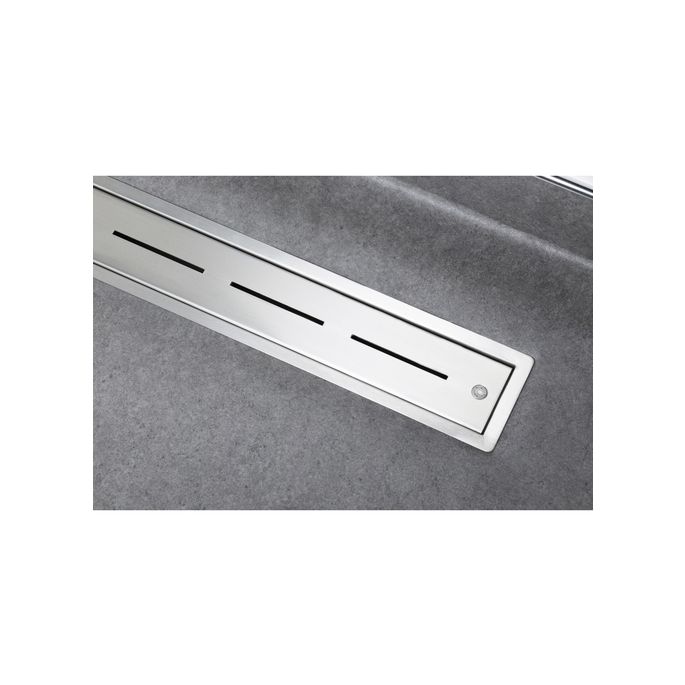

  • GRATE: Brushed stainless steel
  • GRATE PATTERN: Centre, Standard
  • ADJUSTABLE GRATE: No
  • WHEELCHAIR ACCESSIBLE: Yes
  • EXTENSION SET AVAILABLE: No
