Easy Drain Xs Nano NANOLINE1000 shower drain 100cm horizontal outlet
Brand:
Easy Drain Xs Nano NANOLINE1000 shower drain 100cm horizontal outlet
€452.00
incl. VAT
Brand:
stainless steel brushed
Algemeen
Series
Easy Drain Xs Nano
Brand
Easy Drain
Delivery time
1 - 2 weeks
Color
stainless steel brushed
Douchegoot
Grate width
40mm
Installation depth
- 110mm - 119mm
- 90mm - 99mm
- 100mm - 109mm
Grate length
1000mm
Max drainage capacity
33 l/min
Grate look
closed / smooth
Installation option
Floor drain without flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
Yes
Outer tube diameter
50mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description
Easy Drain Xs Nano
With the unique and stylish Easy Drain Nano you have chosen the thinnest shower drainage system available. Nano is equipped with the patented TAF-system and Water Protection System. This means 100% watertight and a perfect finish. The included water seal is easy to clean and offers a very high drainage capacity.
- SHOWER DRAIN MODEL: Linear shower drain
- SERIE: Nano
- APPLICATION: New construction, Renovation
- CERTIFICATION: DIN 18534, EN 1253, ETAG-022
- SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
- FLOOR FINISH: Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic

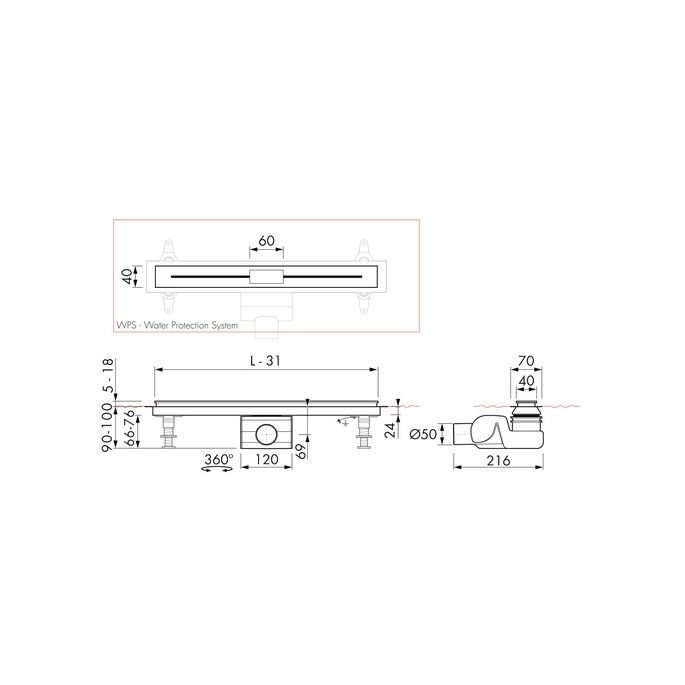

- INSTALLATION DEPTH (INCL. GRATE) (MM): 90
- INSTALLATION DEPTH (MM): 90
- CONNECTION (⌀): 50 (Global)
- HEIGHT ADJUSTABLE FEET INCLUDED: Yes
- INSTALLATION OPTION: Floor
- DIMENSIONS (MM): 1000 mm

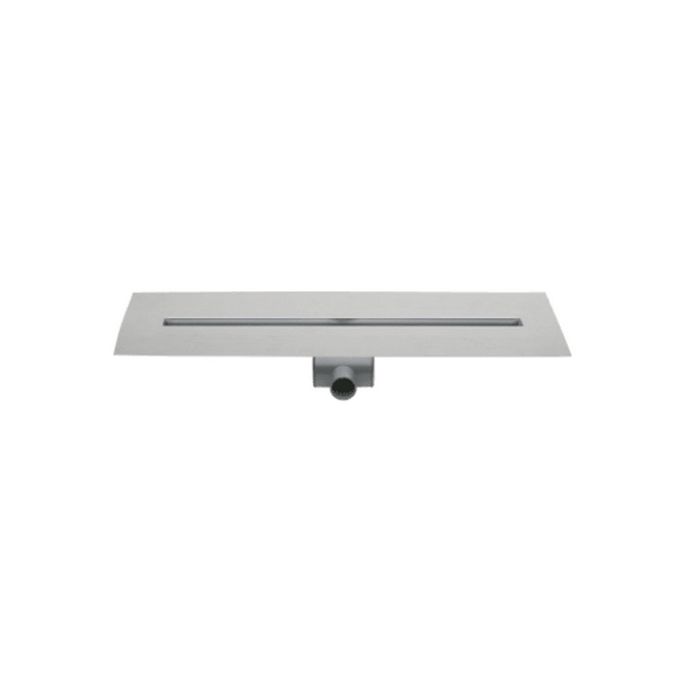

- OUTLET TYPE: Rotatable outlet
- WATER SEAL (MM): 50

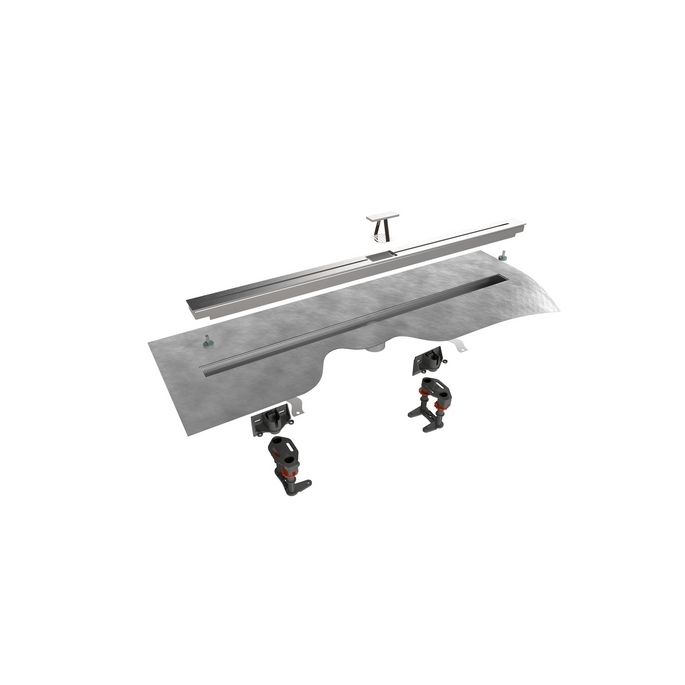

- BUILT-IN SET: Nano | Rotatable outlet | Water seal 50 mm
- OUTLET: Horizontal (Vertical outlet optional)
- LOCATION IN SHOWER: Between two walls, Free in the floor
- DRAINAGE CAPACITY (L/MIN): 33

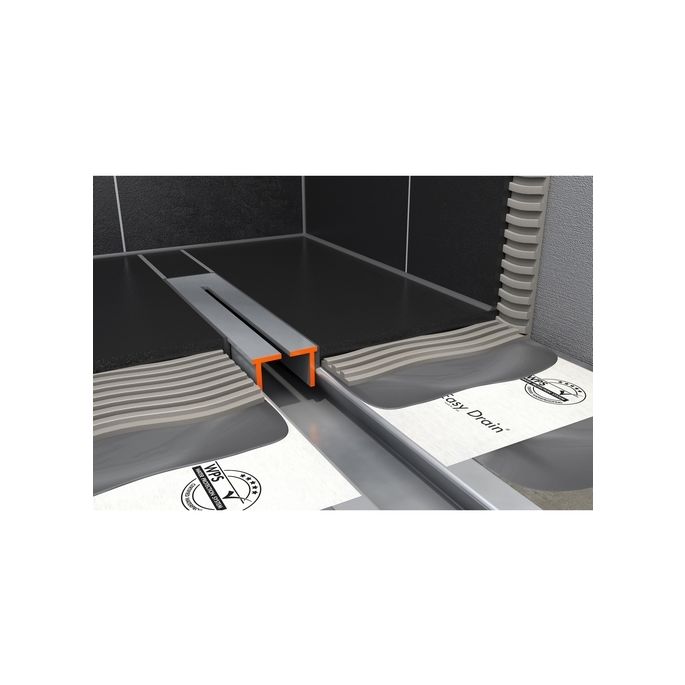

- PRE-ASSEMBLED SEALING MEMBRANE (WPS): Yes
- SIPHON CHARACTERISTICS: Cleanable, Height adjustable, Pivotable & adjustable

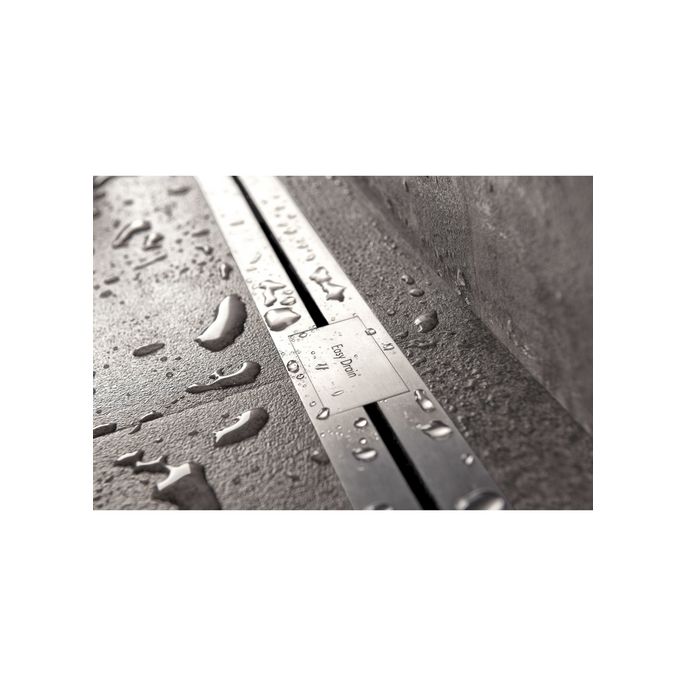

- GRATE: Brushed stainless steel
- GRATE PATTERN: Slot
- ADJUSTABLE GRATE: No
- TAF FRAME TYPE: TAF (Tile Adjustable Frame)
- FRAME MATERIAL: Stainless steel (304)
- FRAME FINISH: Brushed stainless steel (304)
- WHEELCHAIR ACCESSIBLE: Yes
- EXTENSION SET AVAILABLE: No
