Easy Drain Xs Z-1 XSTAF1100Z1M shower drain 110cm horizontal outlet
Brand:
Easy Drain Xs Z-1 XSTAF1100Z1M shower drain 110cm horizontal outlet
€441.00
incl. VAT
Brand:
stainless steel brushed
Algemeen
Series
Easy Drain Xs Z-1 Geborsteld
Brand
Easy Drain
Delivery time
1 - 2 weeks
Color
stainless steel brushed
Douchegoot
Grate width
36mm
Installation depth
- 110mm - 119mm
- 90mm - 99mm
- 100mm - 109mm
Grate length
1100mm
Max drainage capacity
41 l/min
Grate look
closed / smooth
Installation option
Floor drain without flange
Outlet
Horizontal outlet
Pre-assembled sealing membrane
Yes
Outer tube diameter
50mm
Showerdrain one-pack
- Yes
- standard with grid
Specifications
Location in a shower
Free in the floor, Between two walls, One-sided, Three-fold
Characteristics
Adjustable grate, Wheelchair accessible, Waterproof, Water Protection System, TAF model, EN 1253 certified
Max drainage capacity entrance
38 l/min
Floor type
Sand cement, Concrete, LEWIS sheets, Wooden floor
Water seal height
30mm, 50mm, 35mm
Siphon
Cleanable drainage siphon, Height adjustable drainage siphon, Pivoted and adjustable drainage siphon
Description

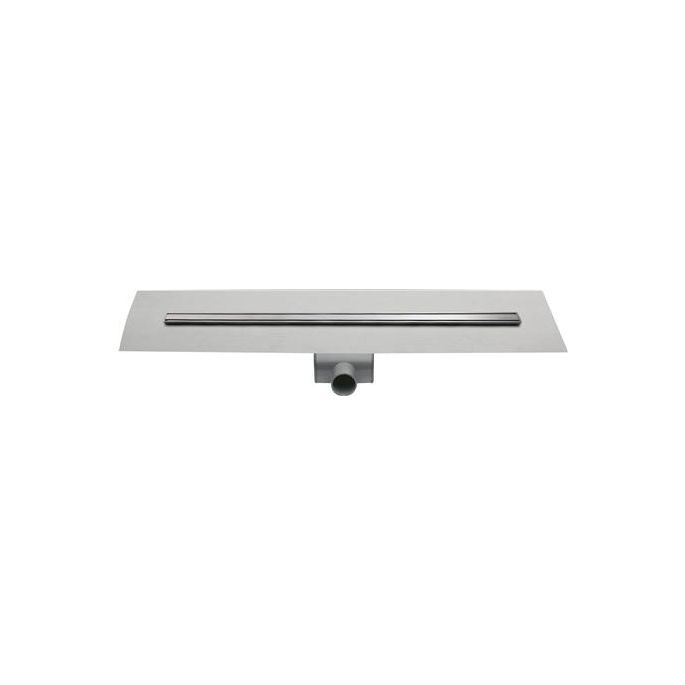

Easy Drain Xs Z-1

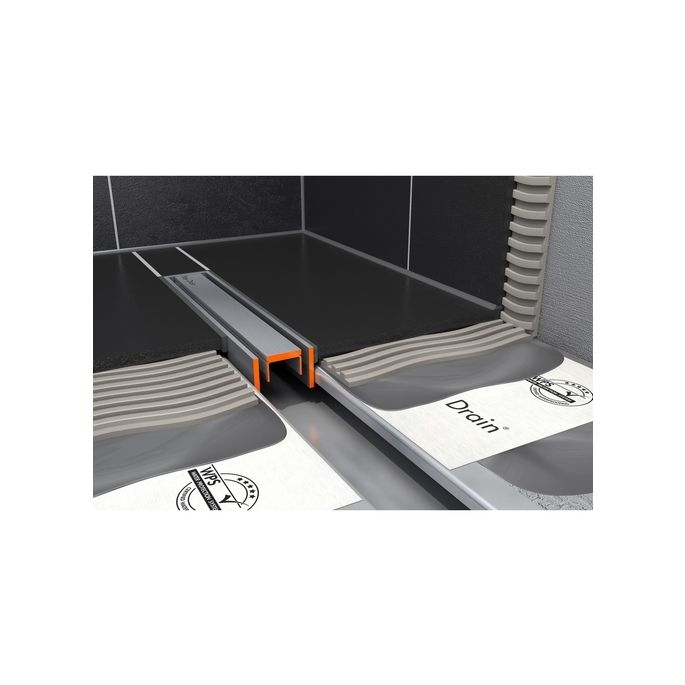

Easy Drain Xs, the world’s smallest design linear shower drain, is equipped with the patented TAF-system and Water Protections System, so we can guarantee a 100% water proof finish. The award winning Xs design set Z-1 is installed with a subtle small frame on all sides and offers very high water capacity.
- SHOWER DRAIN MODEL: Linear shower drain
- SERIE: Xs-Z1
- APPLICATION: New construction, Renovation
- CERTIFICATION: DIN 18534, EN 1253, ETAG-022
- SUBSTRATE: Concrete / Sand Cement, Lewis sheets, Wooden floors
- FLOOR FINISH: Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic
- INSTALLATION DEPTH (INCL. GRATE) (MM): 90
- INSTALLATION DEPTH (MM): 95
- CONNECTION (⌀): 50 (Global)
- HEIGHT ADJUSTABLE FEET INCLUDED: Yes
- INSTALLATION OPTION: Floor
- DIMENSIONS (MM): 1100 mm
- OUTLET TYPE: Rotatable outlet
- WATER SEAL (MM): 50

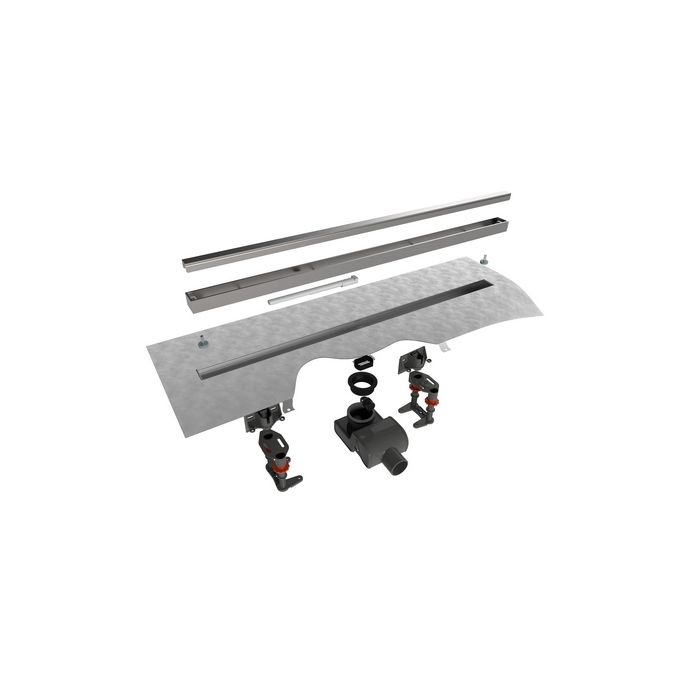

- BUILT-IN SET: Xs | Rotatable outlet | Water seal 50 mm
- OUTLET: Horizontal (Vertical outlet optional)
- LOCATION IN SHOWER: Between two walls, Free in the floor, One-sided, Three-fold
- DRAINAGE CAPACITY (L/MIN): 41
- PRE-ASSEMBLED SEALING MEMBRANE (WPS): Yes
- SIPHON CHARACTERISTICS: Cleanable, Height adjustable, Pivotable & adjustable
- GRATE: Brushed stainless steel
- GRATE PATTERN: Zero / Closed
- ADJUSTABLE GRATE: No
- TAF FRAME TYPE: TAF (Tile Adjustable Frame)
- FRAME MATERIAL: Stainless steel (304)
- WHEELCHAIR ACCESSIBLE: Yes
- EXTENSION SET AVAILABLE: No
